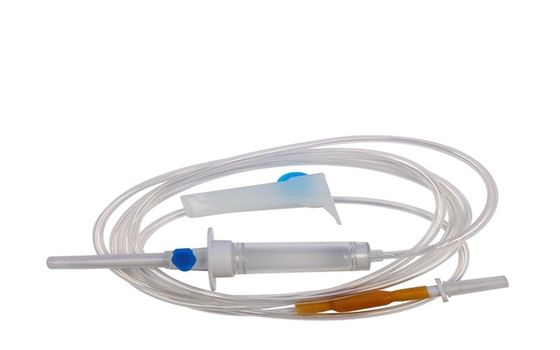

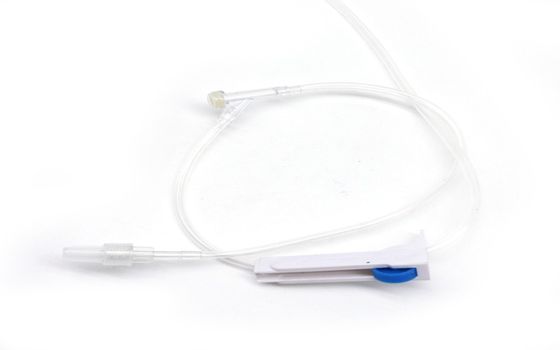

Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable

I worked with FT company more than 10 years and really good performance orthopedic tools with competitive cost, I sold these tools to many countries and all good reputations till now, I hope this will lasts.

—— Sharif

Wesley from Shanghai Future company was very perfessional on products and handling our FAT, 3rd party inspection and accompanied my clients to aduit each supplier, also a good driver for more than 12 hours driving to pick up my clients, impressive!

—— Rasulbek Shahnazarov

Good aftersale service, I really appreciated that the each step maintenance instruction is very detailed and good for my end user even they do not know products functional at all.

—— Ajeev Thalappillil

I'm Online Chat Now

Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable

Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable
Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable

Large Image :  Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable

Product Details:

Place of Origin: CHINA
Brand Name: FUTURE
Certification: CE, ISO,SGS
Model Number: JX071711-2

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: $0.09 - $0.12
Packaging Details: BAG/CARTON
Delivery Time: WITHIN ONE WEEK
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description
Model: 50ml/60ml Disposable Syringe Properties: Injection & Puncture Instrument
Material: PVC Color: Transparent
Usage: Single-use Size: Customized Size
Disinfecting Type: OZONE Application: Clinic

Luer Lock 150ml Lightproof Medical burette type Iv Infusion Set Disposable



Options:

  1. 1With or without Air vented
  2. With or without filter
  3. Hard or soft drip chamber
  4. 100ml chamber
  5. 60drops=1ml
  6. Transparent tube, elastic non-transparent tube, DEHP-FREE tube
  7. Latex injection bulb, Latex injection cylinder, Latex-free bulb, Y-site
  8. Luer slip or luer lock connector
  9. Hypodermic needle or butterfly needle
  10. With or without needle (with cap if without needle)



Operation Instruction

  1. Open the individual packing and take out the infusion set
  2. Firmly close roller clamp
  3. Insert plastic spike into container
  4. Press drip chamber to fill half of it
  5. Open roller clamp and expel air bubbles
  6. Close roller clamp again
  7. Apply needle into patients vein
  8. Adjust flow rate by roller clamp
  9. Open air inlet if use glass container and close the air inlet if use soft container
  10. Dispose properly as medical waste after use
Parts Index Material
Spike Cap / PE(polyethylene)
Spike With air-vent ABS
Drip Chamber 6ml PVC DEHP-Free
Filter Ø12.8 , Micron: 15um Nylon
Predominant Tube

150cm

ID/OD:2.9mm/4.0mm

PVC DEHP-Free
Roller Clamp 45mm PE(polyethylene)
Injection site Bulb type LATEX-Free Synthetic rubber
Connector Luer lock (with cap) Polypropylene
Needle N/A N/A



  • Product is made with Medical Grade Polyethylene, ABS, PVC, Nylon and other Non-toxic materials
  • Product is consist of Spike cap, Spike, Drip chamber, Air filter, Solution Filter,
  • Tube, Controller, Y-Site, Connector and Needle.
  • The product and initial packaging are produced in the 100,000 class purified clean workshops. Product is sterilized with E.O gas, valid for five years.
  • This product is sterile, pyrogen-free, no hemolytic reaction, no acute systemic toxicity.
  • The 21-23G Needle Speed:1ml=15drops,1ml=20drops,1ml=60drops Packing:Polybag, OPP Film, Blister



Packaging & Shipping

1- Sample is free. Delivery time 1-3days, Customer pay courier fee, when you have orders we will dedut it.
2- Large cargo time as customer's request, normal 5-15days.
3- If do customer's OEM, large cargo normal 15-25days.
4- Packing , as our normal packing or as custome's request.
